Automata

An automata is a 5 component object where:

• T is the alphabet
• Q is a set o states
• S is the initial state
• Z is the final state
• δ is the state transition function

Non-deterministic Automata (AND)

A non-deterministic automata, its an automata in which the state transition function is given a certain state and a symbol of the alphabet. As a result it shall give us a set of states.

GSR to AND

Let’s consider the following GSR:

S → I | E
I → A | ’+’ A | ’-’ A
A → d Z | d A
E → ’+’ F | ’-’ F | F
F → d F | d X1
X1 → ’.’ A
Z → ε

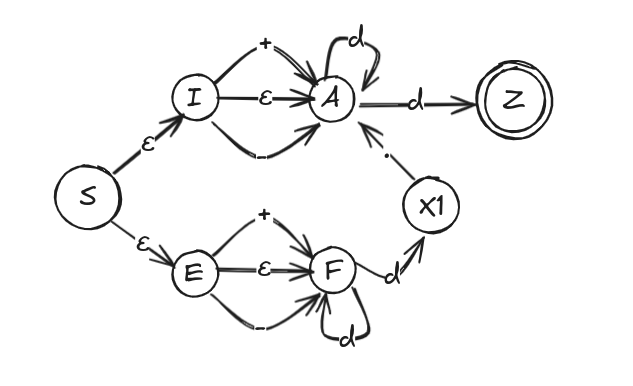

Analysing it we can determine the following AND:

Deterministic Automata (AD)

A deterministic automata is an automata in which the state transition function is given a certain state and a symbol of the alphabet. As a result it gives back a state.

AND to AD

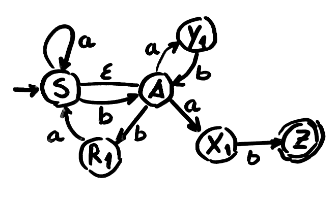

Let take into account the following grammar and automata:

S → A | a S | b A
A → a X1| a Y1| b R1
X1 → b Z
Y1 → b A
R1 → a S
Z → ε

A viable method to transform an AND to an AD is using a table:

State	a	b
S,A	S,A,X1,Y1	A,R1
S,A,X1,Y1	S,A,X1,Y1	A,R1,Z
A,R1	X1,Y1,S,A	R1
A,R1,Z	X1,Y1,S,A	R1
R1	S,A

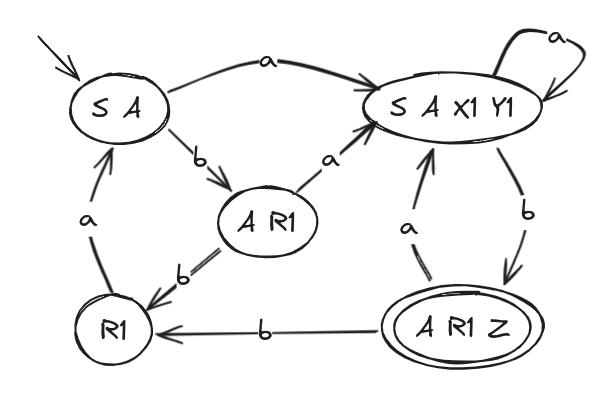

Having this table we can reproduce the following AD automata:

Regex to AND

A thing about regular expressions is that we can also convert them into AND automata.

Here are the following

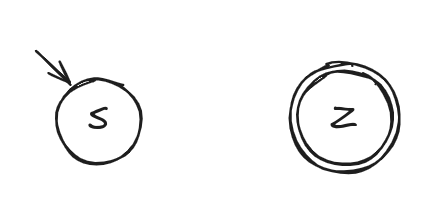

1. e = φ

2. e = ε

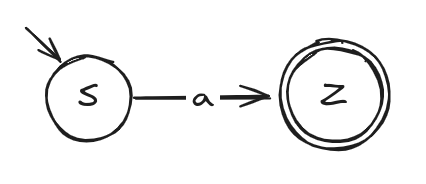

3. e = a

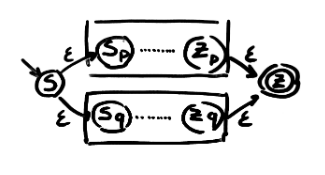

4. e = p + q (p and q are regular expressions)

5. e = p . q

6. e = p+

7. e = p*

---
